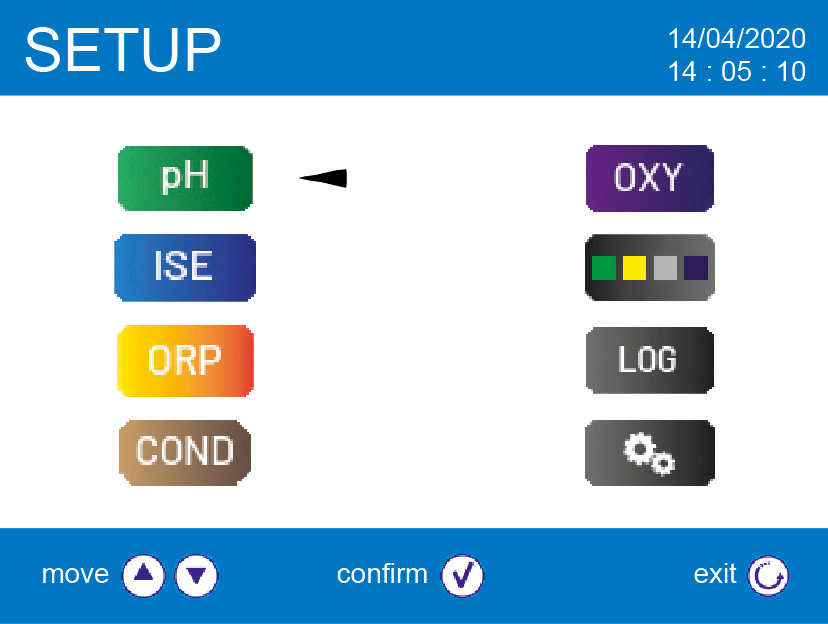

The waterproof portable multimeter REVIO has a large multifunctional color display showing the current measured value of pH/ORP/ISE/conductivity/TDS/salinity/DO and temperature or all parameters at once. At the same time, the display shows the time, stability indicator, data storage, calibration information.
The waterproof portable multimeter REVIO has a large multifunctional color display showing the current measured value of pH/ORP/ISE/conductivity/TDS/salinity/DO and temperature or all parameters at once. At the same time, the display shows the time, stability indicator, data storage, calibration information. The device's internal backup memory allows the storage of 10,000 data files (they remain stored even when the device is switched off). Each series of measured data is stored with the corresponding temperature, time and date of measurement (GLP). Data can be downloaded to a computer via USB and Data-Link software.
Water supply and wastewater treatment, aquariums, swimming pools, aqua parks and spa facilities, agricultural and horticultural applications (fish farming, hydroponics, etc.), food industry, pulp and paper industry, energy (boilers, cooling towers), water quality control and ecological studies, school and technology laboratories.

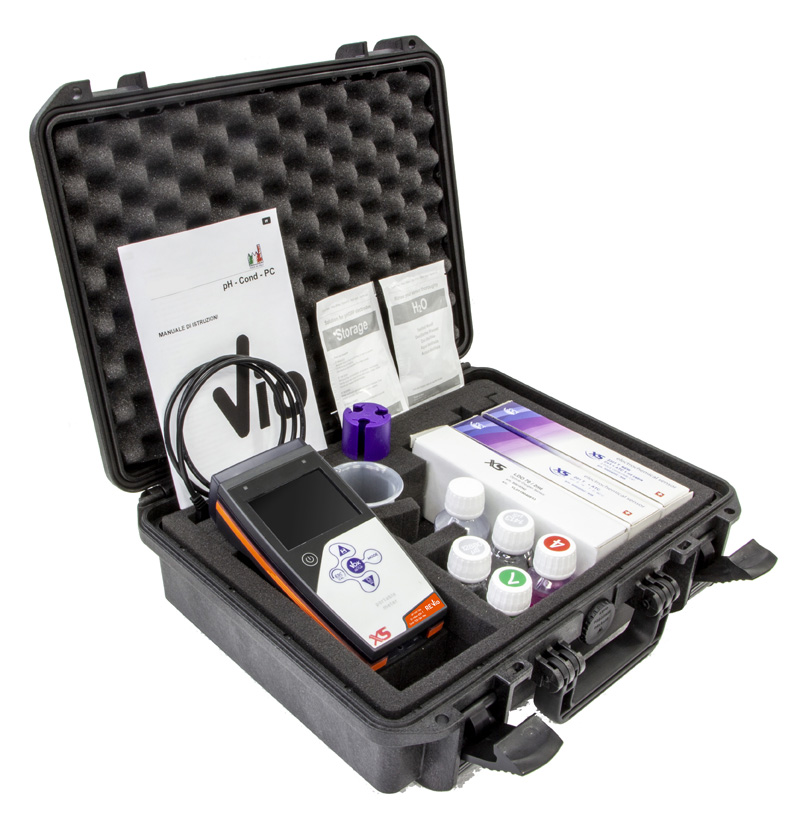

**REVIO complete set includes ** multimeter, pH sensor CHS ChemFlex S7, conductivity sensor CHS CondiGo 30W, pH, conductivity, DO buffers, NT55 temperature probe 3 m cable, S7/BNC cable, power adapter, Data-link software, accessories in a case.
Brand: | CHS |
Category: | Laboratory instruments and accessories / Apparatus for measuring samples / Multiparameter instruments |
pH | |
---|---|
Range | –2,000 to 20,000 pH |
Resolution | 0.1/0.01/0.001 pH |
Accuracy | ± 0.002 pH |
Calibration | 5 point automatic (buffers USA, NIST) + 5 user |
Sensor connection | BNC connector ・ connection of various types of electrodes |
ORP | |
Range | –2,000 to 2,000 mV |
Resolution | 0.1 mV (± 200 mV), 1 mV at higher range |
Accuracy | ± 1% of full scale |
Calibration | Single point (475 mV) |
Ion concentration | |
Range | 0.001 to 19,999 ppm |
Resolution | 0.001 to 0.1 |
Accuracy | ± 1% of full scale |
Units | mg/l, g/l, mol/l |
Calibration | Two to five points |
Conductivity | |
Range | 0.01uS to 1,000.00 mS / cm |
Resolution | 0.01/0.1/1 μS/cm, 0,01/0,1mS/cm |
Accuracy | ± 1% of full scale |
Calibration | One to four point automatic + 1 user |
TDS | |
Range | 0.1 mg/l to 500 g/l |
Resolution | 1% of full range |
Accuracy | ± 1% of full scale |
TDS factor | 0.40 to 1.0 |
Dissolved oxygen | |
Range | 0.00 mg/l to 50 mg/l (ppm) |
Resolution | 0.1 |
Accuracy | ± 1.5% of full scale |
Calibration | One to two point automatic |
Oxygen saturation | |
Range | 0.0 to 400% |
Resolution | 0.1/1% |
Barometric pressure | |
Range | 0 to 1,100 mbar |
Resolution | 1 |
Salinity | 0.1 ppm to 100 ppt |
Temperature | |
Range | –10.0 to 130.0 ° C |
Resolution | 0.1 °C |
Accuracy | ± 0.2 °C |
Temperature compensation pH, conductivity, DO | Automatic/manual (0 to 100°C) |
Stability indicator | Yes |
Normalized temperature | 10,0 to 30,0°C (25°C standard) |
Temperature coefficient | 0,00 to 10,00%, ultrapure water |
Cell constant | 0,1/ 1,0/ 10,0 |
Memory (GLP) | Yes |
Data storage | Automatic / manual, up to 10,000 data |
Calibration timer | Yes |
Automatic switch-off | adjustable |
Operation temperature | 0 to 45°C |
Inputs | 3× BNC, 3× RCA / cinch connector (ATC), 1× banana, MicroUSB (PC) |
Power supply | 3× alcaline batteries 1,5V AA, AC/DC with USB from PC |
Protection | IP57 |
Weight | 400 g |
Dimensions | 185 × 85 × 40 mm |
Phys. property | MULTI |
Instrument type | Portable |
