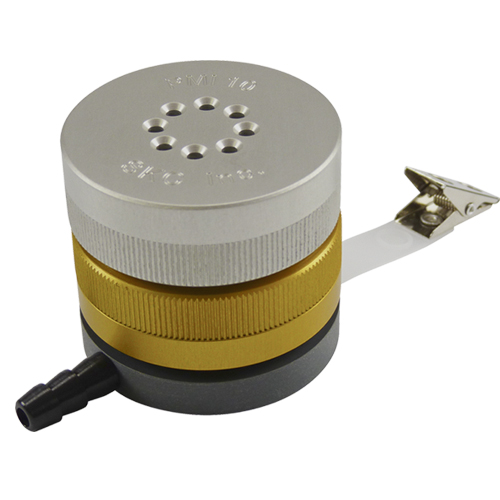

Personal Modula Impactor PM Coarse (PMI)
Reference: 225-351
Personal Modular Impactor (PMI), single-stage impactor designed for highly efficient collection of PM Coarse (PM10–2.5) at 3 L/min, includes impactor and two filter cassettes with support screen; requires collection media and impaction substrate, which are purchased separately.
Your price
on inquiry
Availability: ask us
Product description
Product description
Personal Modular Impactor (PMI), single-stage impactor designed for highly efficient collection of PM Coarse (PM10–2.5) at 3 L/min, includes impactor and two filter cassettes with support screen; requires collection media and impaction substrate, which are purchased separately.
Parameters
Parameters
| Brand: | PMI Impactor |
| Category: | Laboratory instruments and accessories / Air Sampling / Aerosol sampling heads |
Technical specifications
| Flow Rate | 3 L/min for all models | ||
| 50% Cut-point | 10 µm or 2.5 µm (model dependant) | ||
| Material | Inlet | Precision-tooled aluminum | |
| Exhaust | PVC | ||
| Filter Cassette | Delrin® with stainless steel support screen | ||
| O-ring | Inlet — PTFE, Exhaust — BUNA-N | ||
| Final Collection Filter | 37-mm filter, select filter material based on application | ||
| Impaction Substrate | 25-mm pre-oiled, disposable porous plastic disc to reduce particle bounce or 25-mm filter for optional chemical analysis | ||
| Analyses | Gravimetric and chemical |
Dimensions (without clip)
| Diameter | 5.1 cm |
| Height | 2.6 cm |
| Weight | 70.9 g |
| Tubing ID | 1/4-inc |
