MemoRail Modbus, Inputs 1-channel 1xMS/1xLDO, Outputs Modbus RTU (R5485), power supply 24 V DC

MemoRail Modbus A 1405 N

Compact Transmitter with Modbus Interface for Memosens and Digital Sensors.

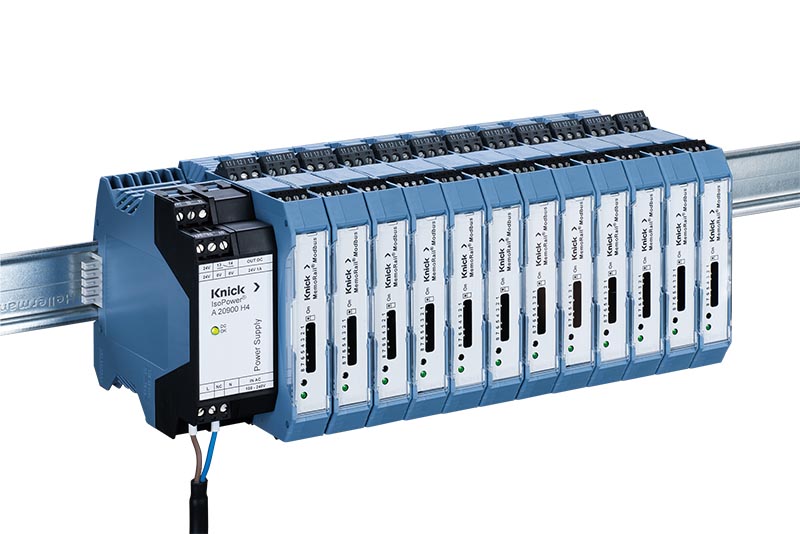

MemoRail Modbus is a space-saving transmitter with Modbus RTU interface in a 17.5 mm modular housing. Available as a 1– or 2-channel version for operation with contactless Memosens sensors as well as the SE 680 digital conductivity sensor and the SE 740 optical oxygen sensor. The compact multi-parameter analyzer supports a variety of process variables:

• pH/ORP
• Contacting conductivity
• Inductive conductivity
• Amperometric oxygen
• Optical oxygen
• Temperature

Facts and Features

Slim modular housing with 17.5 mm width Connects directly into PLC/HMI without a redundant display Memosens communication Multi-Channel: 1– and 2-channel version Multi-Parameter: With pH/ORP combo sensors, measurement of up to four process values simultaneously plus temperature Modbus RTU protocol with standard RS-485 interface Up to 32 devices in parallel on a Modbus master Calibration from PLC/HMI Sensor diagnostics can be displayed along with process variables Power supply 24 V DC
