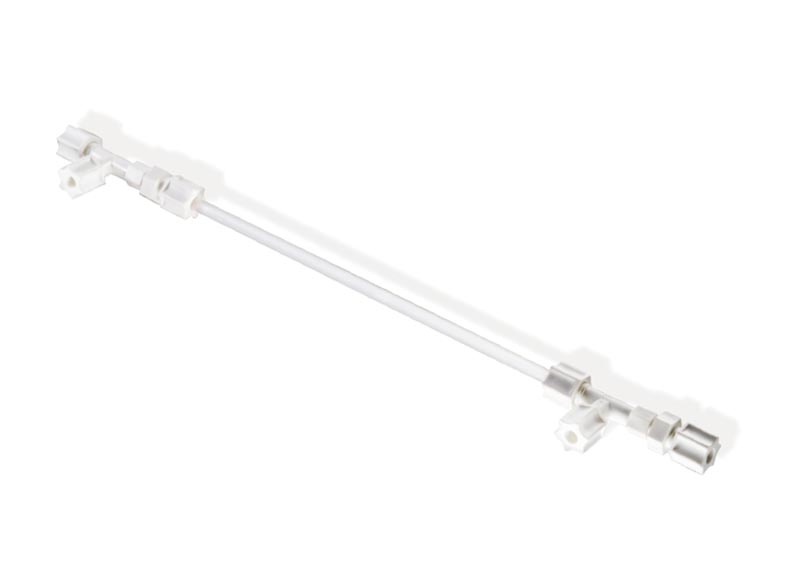

Humidifier Nafion, 1 tube 0.05", 12" length, PP shell/fittings

Perma Pure MH™-Series humidifiers use an exclusive Nafion selectively permeable membrane tubing and liquid water to continuously humidify gas streams. These humidifiers operate over a wide range of flow rates, and humidify up to 98% RH using deionized water as the humidification source. MH-Series gas humidifiers are tube-in-shell moisture exchangers that allow the transfer of heat and water vapor between a liquid water supply and a gas stream. The water permeates through the walls of the Nafion tube and then evaporates into the gas stream. This transfer is driven by the difference in water vapor pressure between the water and dry gas stream.

• Humidifies continuously
• Transfers only water vapor
• Self-regulating
• High level of humidification
• Maintenance-free operation
• No moving parts
• Excellent corrosion resistance
• Fast response time

Perma Pure offers three MH-Series humidifiers product lines as follows:

PP – polypropylene FC – fluorocarbon SS – stainless steel

Technical specification
