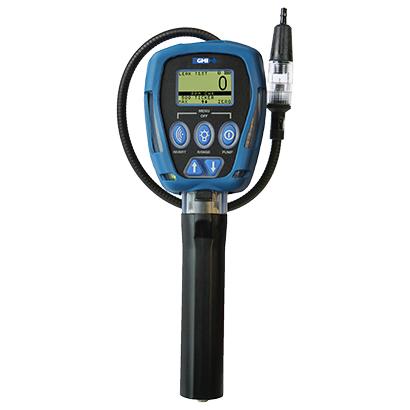

GT Series Multi Gas Monitor GT 43 (CH4, CO, H2S, O2) incl. Carrying Case & Accessories

Reference: C67431

1 instrument – 7 applications Leak Test Mode – measures methane in three different distinct ranges (ppm/LEL/%Volume). Autoranging between all three ranges, audible, visual, and geiger alarms, and ergonomical design allows for easy one handed operation. Also ideal for carbon monoxide investigations.

more information
Your price
on inquiry
Availability: ask us
Product description

Product description

1 instrument – 7 applications

  1. Leak Test Mode – measures methane in three different distinct ranges (ppm/LEL/%Volume). Autoranging between all three ranges, audible, visual, and geiger alarms, and ergonomical design allows for easy one handed operation. Also ideal for carbon monoxide investigations.
  2. Confined Space Mode – measures up to 4 gases (02, LEL, CO, H2S) simultaneously with audible visual alarms, datalogging, and min/max values.
  3. Barhole Mode – for testing underground gas leaks. In this mode the GT measures gas beginning in the LEL range and autoranges to % Volume. Barhole probe included with instrument.
  4. Carbon Monoxide Mode – measures CO directly in ppm. Menu items for air free CO (02 correction) when fitted with an 02 sensor, and differential CO.
  5. Purge Mode – for measuring methane from 0–100% Volume in inert atmospheres.
  6. Sniffer Mode – enables rapid leak detection by measuring methane from 0–10,000ppm with the semi-conductor fitted at the end of the flexi probe. Audible/visual geiger allows for easy pinpointing of leaking pipes.
  7. Pressure Mode – measures from 0–60” of water column via a pressure sensor on the back of the instrument. Ideal for tightness tests on gas systems up to 2 psi.
Configurations
Model Detected gases
GT 40 ppm/%LEL/%Vol. GAS/CO
GT 41 ppm/%LEL/%Vol. GAS/O2
GT 42 ppm/%LEL/%Vol. GAS/CO/O2
GT 43 ppm/%LEL/%Vol. GAS/CO/H2S/O2
GT 44 ppm/%LEL/%Vol. GAS Only
Parameters

Parameters

Brand: GT
Category: Measurement and control / Gas measurement / Portable detectors

Sensor specifications

Gas Range Increments Sensor Type
02 0–25% 0.1% Electrochemical
CO 0–2000ppm 1ppm Electrochemical
H2S 0–100ppm 1ppm Electrochemical
Dual Tox (CO/H2S) 0–2000ppm /0–100ppm 1ppm Electrochemical
CH4 0–10,000ppm 1ppm Semiconductor
CH4 0–100%LEL 1% Catalytic Bead
CH4 0–100% Volume 1% Thermal Conductivity

Technical parameters

Enclosure High Impact Polycarbonate ABS blend
Rating IP54
ATEX Ex iad IIB T3
Battery 3 C batteries –LR14 alkaline or rechargeable
Battery life 8 hours continuous alkaline or rechargeable
Humidity 0 to 98%, non-condensing
Size 290 × 95 × 43 mm
Weight 0,78 kg with batteries and probe
