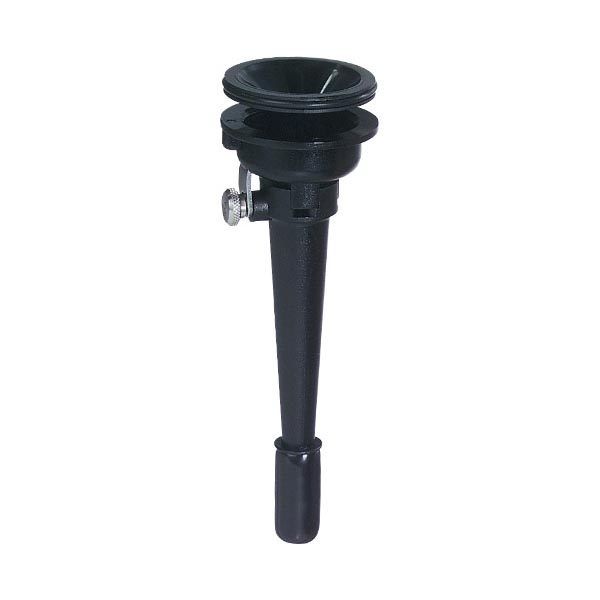

GS-3 Cyclone with cassette adapter 37 mm

The GS-3 Cyclone is a 10-mm lightweight conductive plastic unit used with a standard 3-piece cassette with filter for the collection of respirable dust particles. The GS-3 Cyclone's re­movable cassette adapter securely holds the filter cassette in place during sampling. Designed to meet the ACGIH/ISO/CEN respirable curve, the GS-3 Cyclone has a 50% cut-point of 4.0 µm (bias within ISO/NIOSH requirements) at 2.75 l/min and 3.5 µm at 3.7 l/min for alternate applications.

Unique Design

• Conductive plastic construction eliminates static collection problems with charged particles
• Tangential inlets lessen sampling errors that can occur when particles impact on the wall of the cyclone opposite the inlet.
• Multiple inlets eliminate sensitivity to wind velocity and user orientation to the contaminant source.
