CHS WaterBase Plus 120 mm, fixed cable 5 m, BNC connector - process sensor
Reference: CHS-5611-A0FB-05
Process pH Sensor CHS WaterBase Plus suitable for undemanding applications in the chemical industry typical use in water supply and fish farms usable at low temperatures fixed cable 5m with BNC connector
Your price
on inquiry
Availability: ask us
Product description
Product description

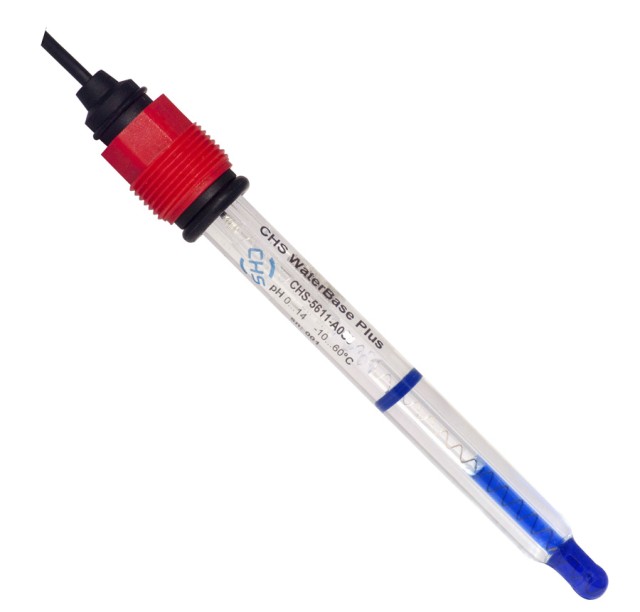

Process pH Sensor CHS WaterBase Plus
- suitable for undemanding applications in the chemical industry
- typical use in water supply and fish farms
- usable at low temperatures
- fixed cable 5m with BNC connector
Parameters
Parameters
| Brand: | CHS WaterBase Plus |
| Category: | Measurement and control / Measurement of liquids / Sensors |
Dimensions
| Sensor length | 120mm |
| Electrical connection | BNC |
| Process connection | PG 13,5 |
Use
| Phys. property | pH |
| Maintenance | Maintenance free |
| ATEX | General use |
Material
| Sensor material | Glass |
| pH glass | S |
| Diaphragm | Open Pore |
| Reference system | Ag/AgCl |
| Electrolyte | Polymer |
| Temperature sensor | - |
Operating conditions
| Operating pressure | 0 - 6bar |
| Operating temperature | -10 - 60°C |
| Measuring range (pH) | 0 - 14pH |
