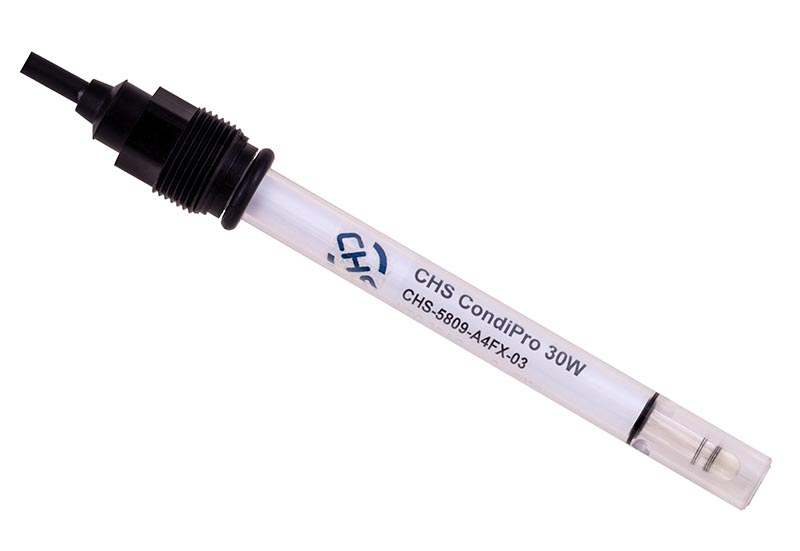

CHS CondiPro 30W conductivity sensor, Pt wires, C=1, Plastic shaft, immersion depth 30 mm, NTC30, PG 13,5, 3 m cable length, free end
Reference: CHS-5809-A4FX-03
CHS CondiPro 30W * is a process conductivity probe with a plastic body providing protection against breakage. The cell constant C = 1 offers a measuring range from 10µS / cm to 20mS / cm. The cell constant is indicated on the probe cable.
Your price
on inquiry
Availability: ask us
Product description
Product description
- CHS CondiPro 30W * is a process conductivity probe with a plastic body providing protection against breakage. The cell constant C = 1 offers a measuring range from 10µS / cm to 20mS / cm. The cell constant is indicated on the probe cable.
Application
- Drinking water
- Surface water, well monitoring
- Wastewater treatment plants
- Diluted solutions
Parameters
Parameters
| Brand: | CHS CondiPro 30W |
| Category: | Measurement and control / Measurement of liquids / Sensors |
Dimensions
| Sensor length | 120mm |
| Electrical connection | Open end |
| Process connection | PG 13,5 |
Use
| Phys. property | Conductivity |
| Maintenance | Maintenance free |
| ATEX | General use |
Material
| Sensor material | Plast |
| Temperature sensor | NTC 30 |
Operating conditions
| Operating pressure | 0 - 1bar |
| Operating temperature | 0 - 60°C |
| Measuring range (COND) | 10 µS/cm...20 mS/cm |
