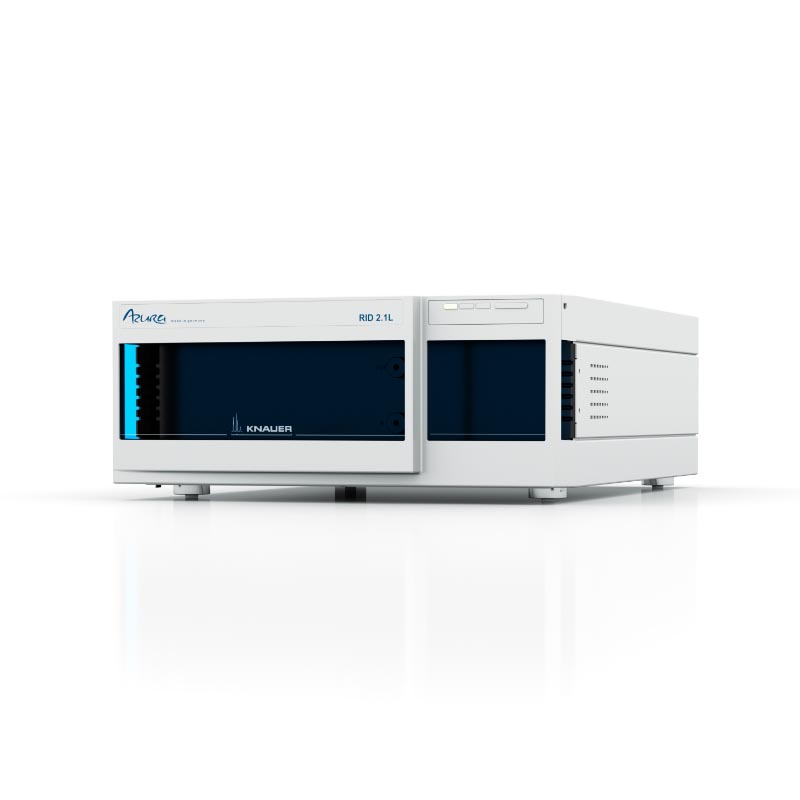

AZURA RID 2.1L Refractive index detector

The AZURA RID 2.1L is a sensitive and competitively priced differential refractometer suitable for detecting compounds with little or no UV activity such as alcohols, sugars, lipids or polymers.

Your price
on inquiry
Availability: ask us
Product description

Product description

The AZURA RID 2.1L is a sensitive and competitively priced differential refractometer suitable for detecting compounds with little or no UV activity such as alcohols, sugars, lipids or polymers. This instrument is designed for use in analytical HPLC (high performance liquid chromatography) as well as for GPC (gel permeation chromatography) applications.

The intelligently designed optical unit with advanced temperature control ensures high sensitivity, fast baseline stabilization, and excellent reproducibility. Furthermore, the long-life LED, highly pressure resistant flow cell, improved safety features and enhanced diagnostics functions guarantee easy handling and minimal maintenance.

The wide linear dynamic range and 10 ml/min maximum flow rate make the AZURA RID 2.1L the perfect choice for most laboratory tasks. This detector can be controlled with OpenLAB® EZChrom, ClarityChrom®, Chromeleon® and PurityChrom® Bio software, as well as from the AZURA Mobile Control app (stand-alone operation), via LAN or through analog input/output, allowing it to be integrated into almost any LC system.

Parameters

Parameters

Brand: Azura
Category: Laboratory instruments and accessories / Chromatography / Liquid chromatographs
Light source Long-life LED
Refractive index range 1.00 to 1.75 RIU
Noise ± 2.5 nRIU
Drift 200 nRIU/h
Linearity >1000 µRIU
Temperature control OFF, 30 to 55°C (1°C increment)
Flow cell 5 bar back pressure resistence
Flow cell volume 15 μl
Maximum data rate 100 Hz (LAN)
20 Hz (Analog)
Analog outputs 1 × 0 to 2V scalable, 20 bit, offset adjustable
Operation temperature 4 to 40°C
Operating humidity <90% RH (non-condensing)
Power supply 100 to 240V, 50 to 60Hz, 65W
Dimensions (W x H x D) 361 × 158 × 523mm
Weight 10.8kg
