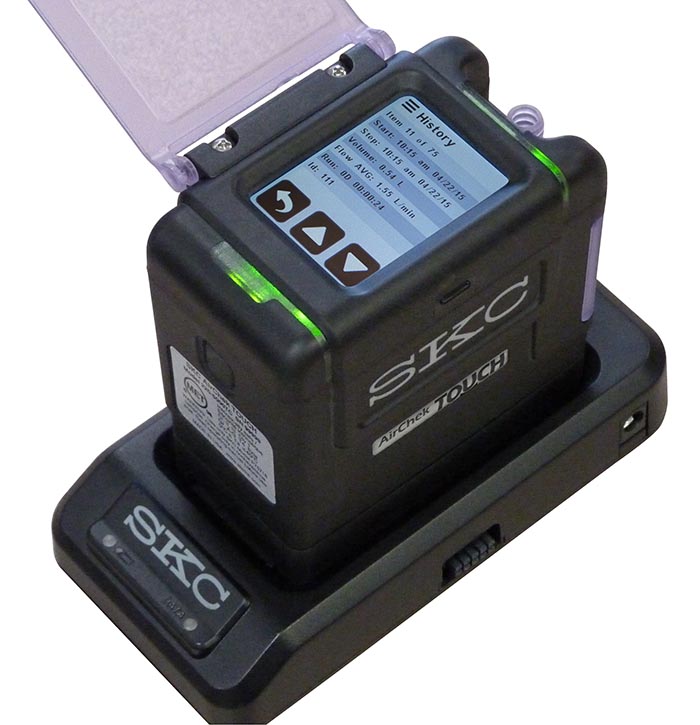

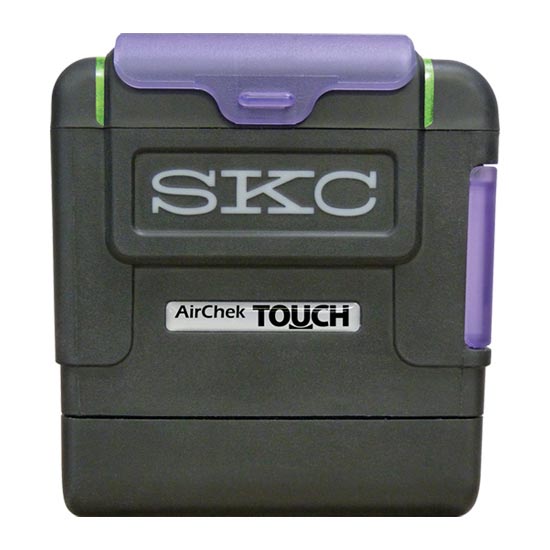

AirChek TOUCH - air sampling pump incl. Li-Ion battery (includes charger)

Reference: 220-5000TC-S

AirChek Touch personal sampling pump is intended for use in industrial hygiene monitoring.

more information

Your price

on inquiry

Availability: ask us

Product description

AirChek Touch personal sampling pump is intended for use in industrial hygiene monitoring.

Main features

Extended flows from 5 to 5000 ml/min (5 to 500 ml/min with low flow adapter Multi-tube sampling in low flow mode)
Color touch screen navigation, easy programming
Continuous, timed, and intermittent sampling
Hands-free CalChek® calibration
High back pressure compensation
Powerful Li-Ion battery for long run times
Corrects flow for changes in temperature and atmospheric pressure
Screen protection and security
Ultra quiet
New DataTrac® Pro PC Software for easy pump and data management

Parameters

Brand:	AirChek Touch
Category:	Laboratory instruments and accessories / Air Sampling / Sampling pumps

Technical specification

Flow Range	Constant flow from 1000 to 5000 ml/min
Compensation Range	back pressure capability
	5000 ml/min at 20 inches water back pressure
	4000 ml/min at 30 inches water back pressure
	3000 ml/min at 40 inches water back pressure
	2000 ml/min at 50 inches water back pressure
	1000 ml/min at 50 inches water back pressure
Flow Control System	Patented* isothermal, corrects for changes in back pressure, temperature, and atmospheric pressure
Power	Removable rechargeable Lithium-ion (Li-Ion) battery, 7.4 V 2.6 Ah, 19.24 Wh or AC using charging cradle
Run Time	20 hours at 2000 ml/min, 10 hours at 5000 ml/min**, Indefinite run from charging cradle
Charging Time	Approximately 3 hours (varies with battery capacity and level of discharge)
Flow control Accuracy	±5% of set-point after calibration to desired flow
Atmospheric pressure Accuracy	±0.3 in Hg
Temperature Accuracy	±1.0°C
Operating Temperature	0 to 45°C
Charging Temperature	0 to 45°C
Storage Temperature	–20 to 45°C
Operating Humidity	≤95% RH, non-condensing
Storage Humidity	≤95% RH, non-condensing
Altitude	Corrects flow for chages in temperature (0 to 45°C) and ambient pressure up to 4 570 m above and down to 1 370 m below sea level
Display/parameters	Color LCD/real-time flow rate, ambient temperature, ambient pressure, accumulated volume, elapsed time
User Interface	Resistive touch screen with auto-dim and locking options
Sound Level	Average 51.7 dB at 1 m distance using a 37 mm 0.8 µm MCE filter cassette
Case Material	Polycarbonate with rubberized anti-static overmolding
Dimensions	10.4 × 9.4 × 7.1 cm
Weight	550 g

//Note: Low flow from 5 to 500 ml/min requires adapter. *U.S. Patent No. 5,892,160, ** Tested using 37-mm 0.8-µm MCE filter with new pump and battery. Pump performance may vary./
