AIRCHEK CONNECT FIVE PUMP BASIC KIT, 5 - 5000 m/min

Reference: 220-4000K5

The SKC AirChek Connect is a Bluetooth-connected, lightweight, quiet sample pump that is simple to use with its intuitive touch screen operation.

more information

Your price

on inquiry

Availability: ask us

Another option

Product description

The SKC AirChek Connect is a Bluetooth-connected, lightweight, quiet sample pump that is simple to use with its intuitive touch screen operation.

Main features

Compact, lightweight design
Ultra-quiet
Extended flow range, 5 to 5000 ml/min, suitable for dust sampling and vapour sampling
High back pressure compensation- up to 50 inches water at 2 L/min
Powerful Li-ion battery for long run times – over 40 hours
Bluetooth low energy connectivity for pump operation and monitoring using the SmartWave app
Patented (US Patent No. 5,892,160) isothermal internal flow sensor
Flow fault and auto-restart

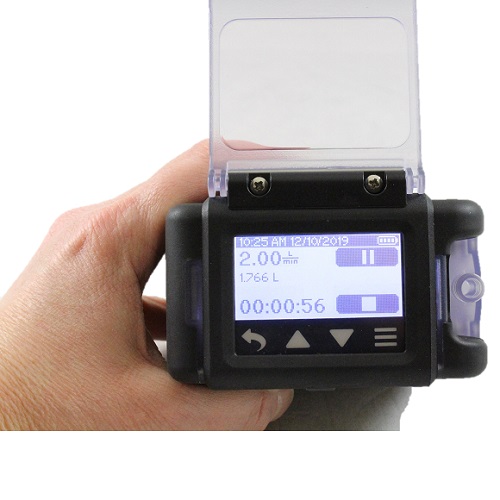

Large LCD with protective screen cover and screen lock-out feature
Displays elapsed time
Highly visible pump run and fault status LEDs
Tough non-slip anti-static case
UL/ATEX approved

The AirChek Connect is also available in basic, dust, vapour/gas, and combined dust and vapour kits.

Parameters

Brand:	AirChek Connect
Category:	Laboratory instruments and accessories / Air Sampling / Sampling pumps

Technical specification

Flow Range	Constant flow from 1000 to 5000 ml/min; 5–500 ml/min with low flow adaptor
Flow Control System	Constant flow compensation
Power	Removable, rechargeable Li-ion battery pack
Run Time	40 hours minimum run time at 2000 ml/min, 15 hours at 5000 ml/min, and up to 50 inches water back pressure
Charging Time	Charging Time: Approximately 3 hours, depending on battery capacity and level of discharge
Operating Temperature	0 to 40°C
Charging Temperature	0 to 45°C
Storage Temperature	–20 to 45°C
Operating Humidity	≤95% RH, non-condensing
Storage Humidity	≤95% RH, non-condensing
Altitude	Corrects flow for chages in temperature (0 to 45°C) and ambient pressure up to 4 570 m above and down to 1 370 m below sea level
Display/parameters	Monochrome, battery status display, elapsed time
User Interface	Resistive touch screen with locking / security options
Sound Level	Average 51.7 dB at 1 m distance using a 37 mm 0.8 µm MCE filter cassette
Case Material	Polycarbonate with rubberized anti-static overmolding
Dimensions	10.4 × 9.4 × 7.1 cm
Weight	550 g
Certification	ATEX, CE

//Note: Low flow from 5 to 500 ml/min requires adapter. *U.S. Patent No. 5,892,160, ** Tested using 37-mm 0.8-µm MCE filter with new pump and battery. Pump performance may vary./
